PVC Potable Waterline Pipes
- Product Details
PVC Potable Waterline Pipes is a water supply pipe made of sanitary polyvinyl chloride resin as
the main raw material, extruded by a plastic extruder and injection molded by an injection molding
machine, and produced through processes such as cooling, curing, shaping, and inspection.
Main features: clean without affecting water quality, good pressure resistance, easy construction,
excellent corrosion resistance.
Basic Information
| Model | PW-20 | PW-25 | PW-32 | PW-40 | PW-50 | PW-63 | PW-90 | PW-110 |
| Diameter | 20mm(1/2″) | 25mm(3/4*) | 32mm(1*) | 40mm(1 1/4″) | 50mm(1 1/2″) | 63mm(2*) | 90mm(3″) | 110mm(4″) |
| Thickness | 1.8mm | 1.9mm | 2mm | 2.3mm | 2.9mm | 3.6mm | 5.2mm | 6.3mm |
| Weight (±5%) | 0.477kg/pc | 0.849kg/pc | 1.128kg/pc | 1.344kg/pc | 2.1kg/pc | 3.12kg/pc | 6.45kg/pc | 9.465kg/pc |
| Length | 3m/pc | 3m/pc | 3m/pc | 3m/pc | 3m/pc | 3m/pc | 3m/pc | 3m/pc |

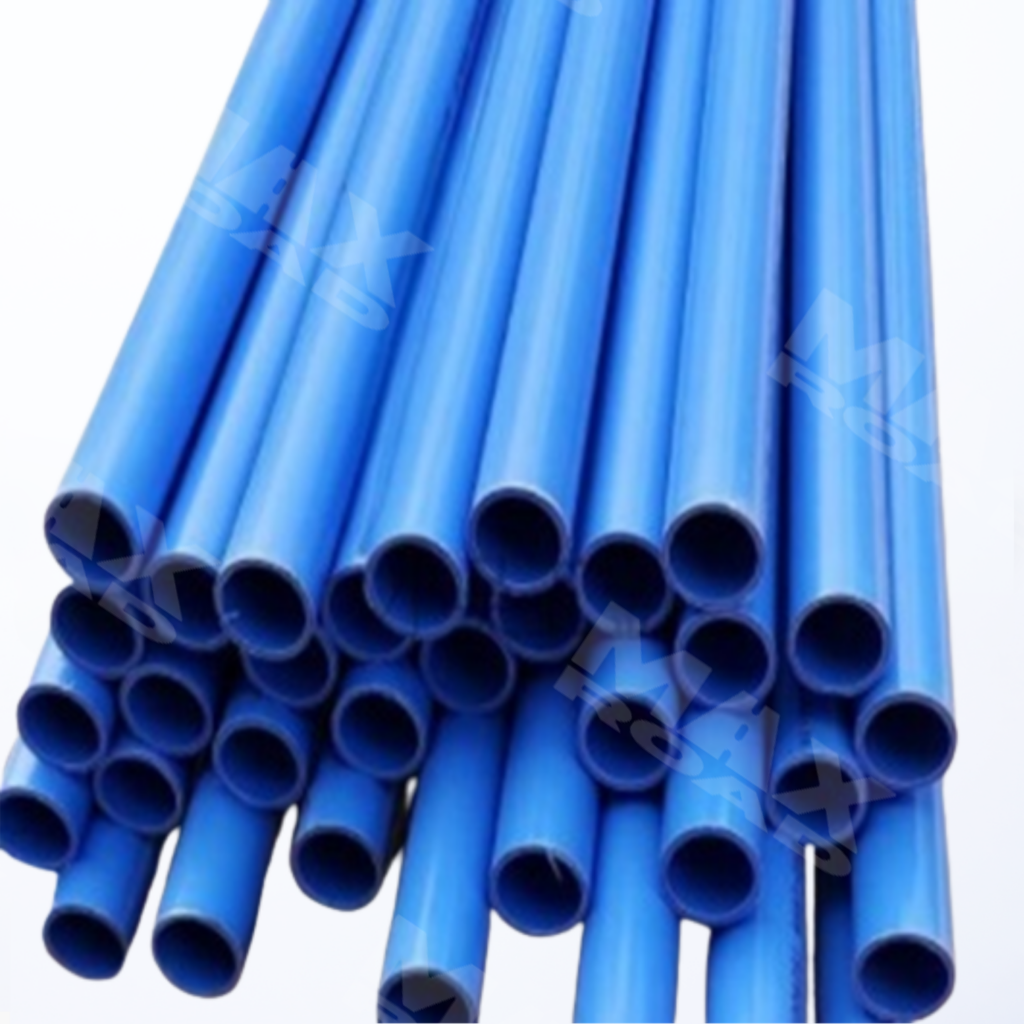

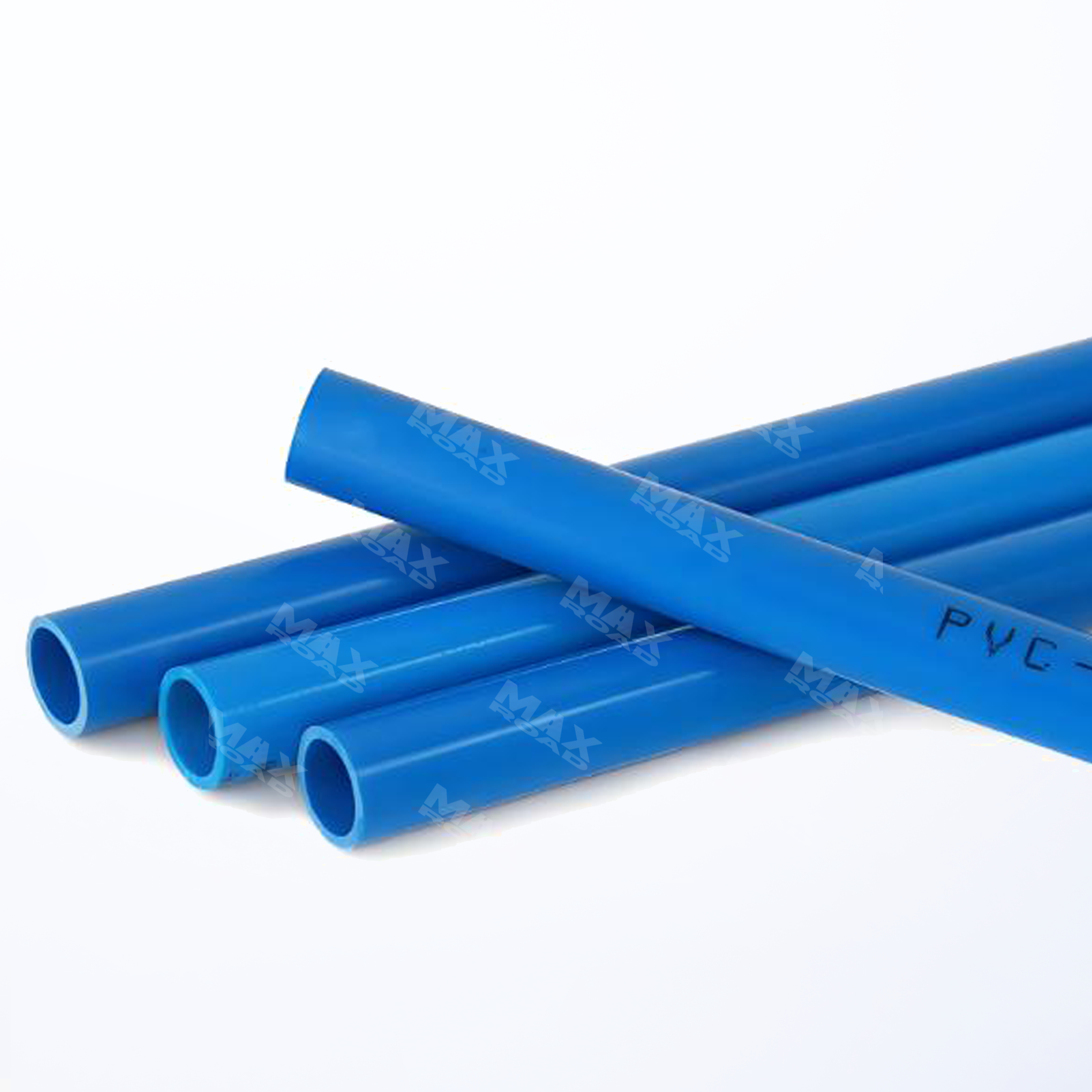

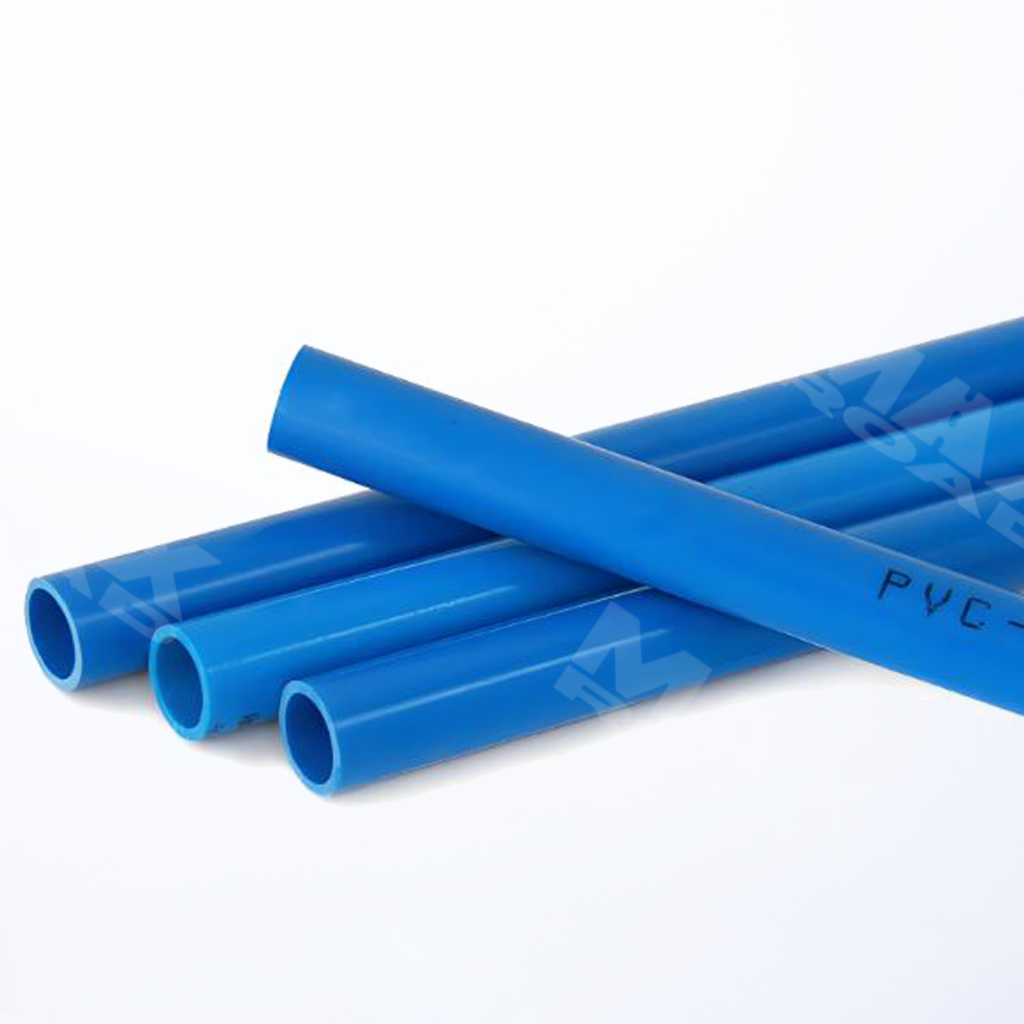

Product Showcase

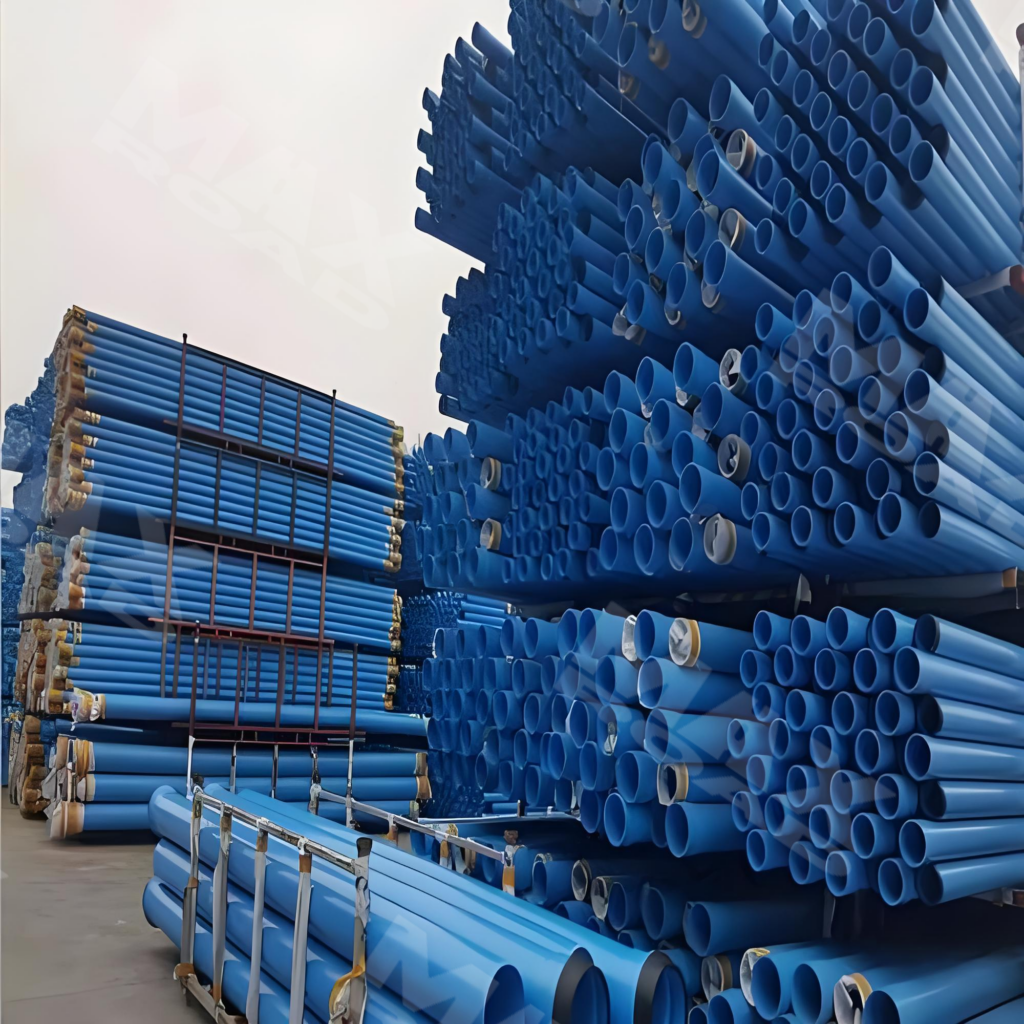

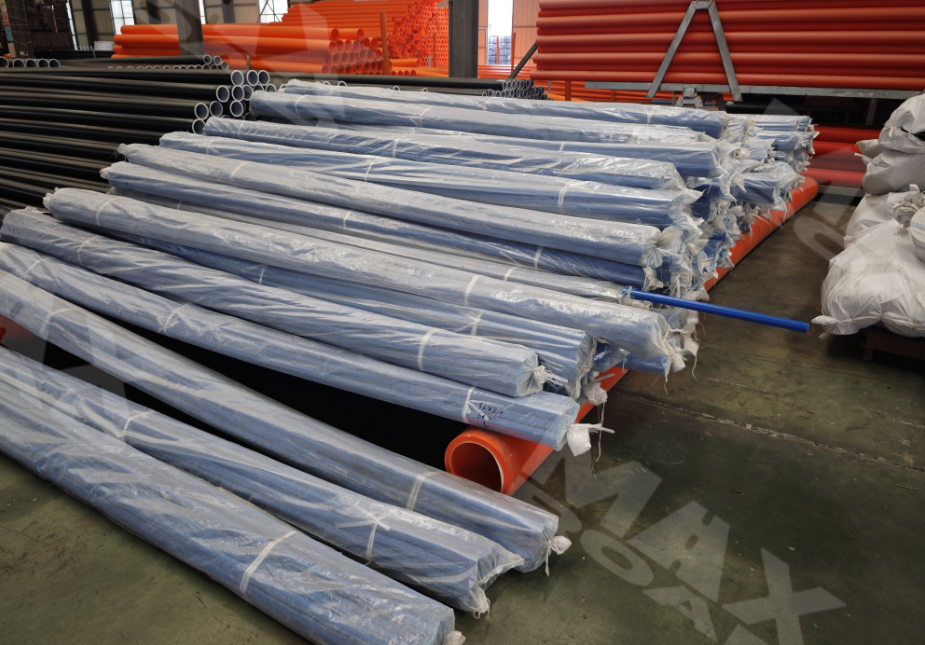

In Warehouse
