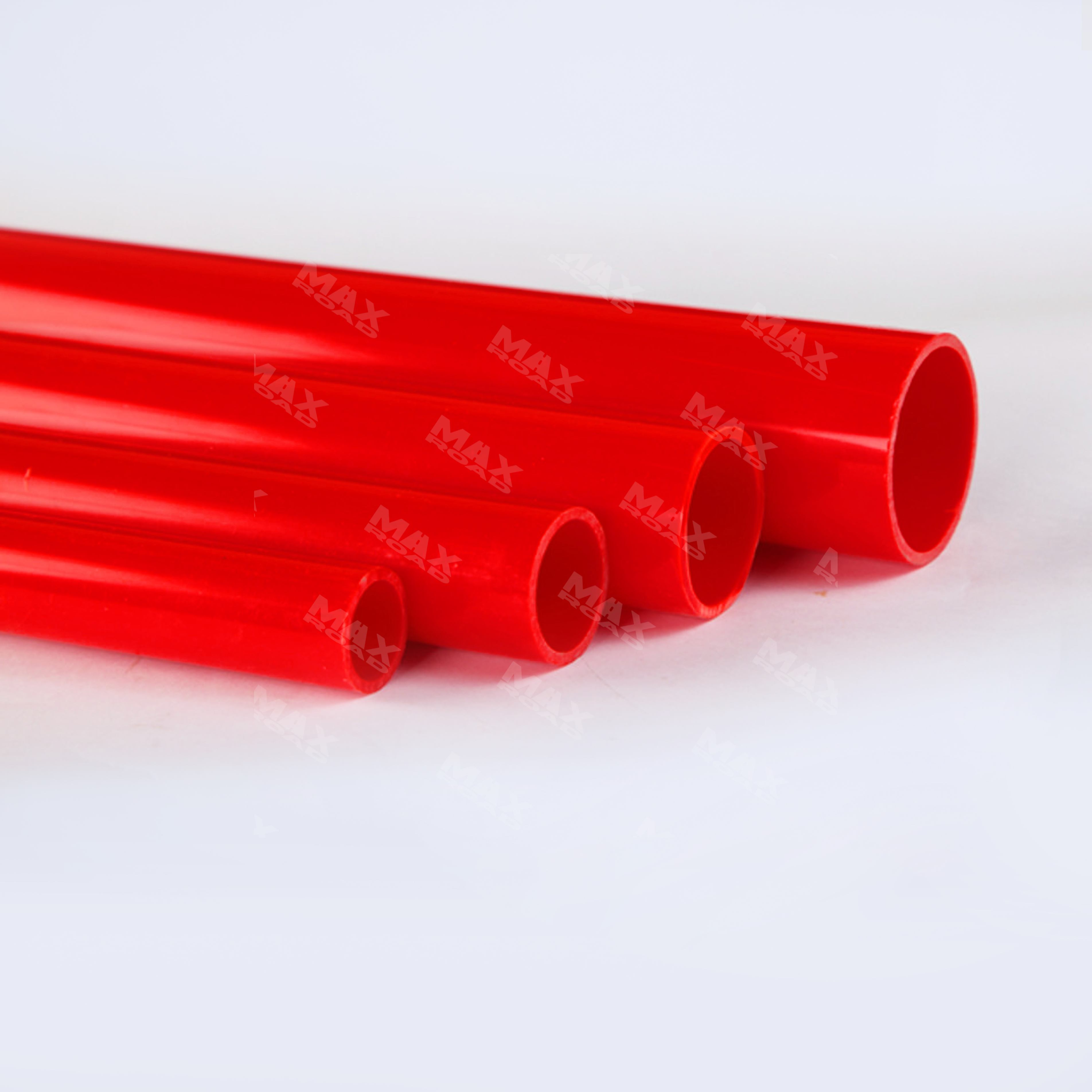

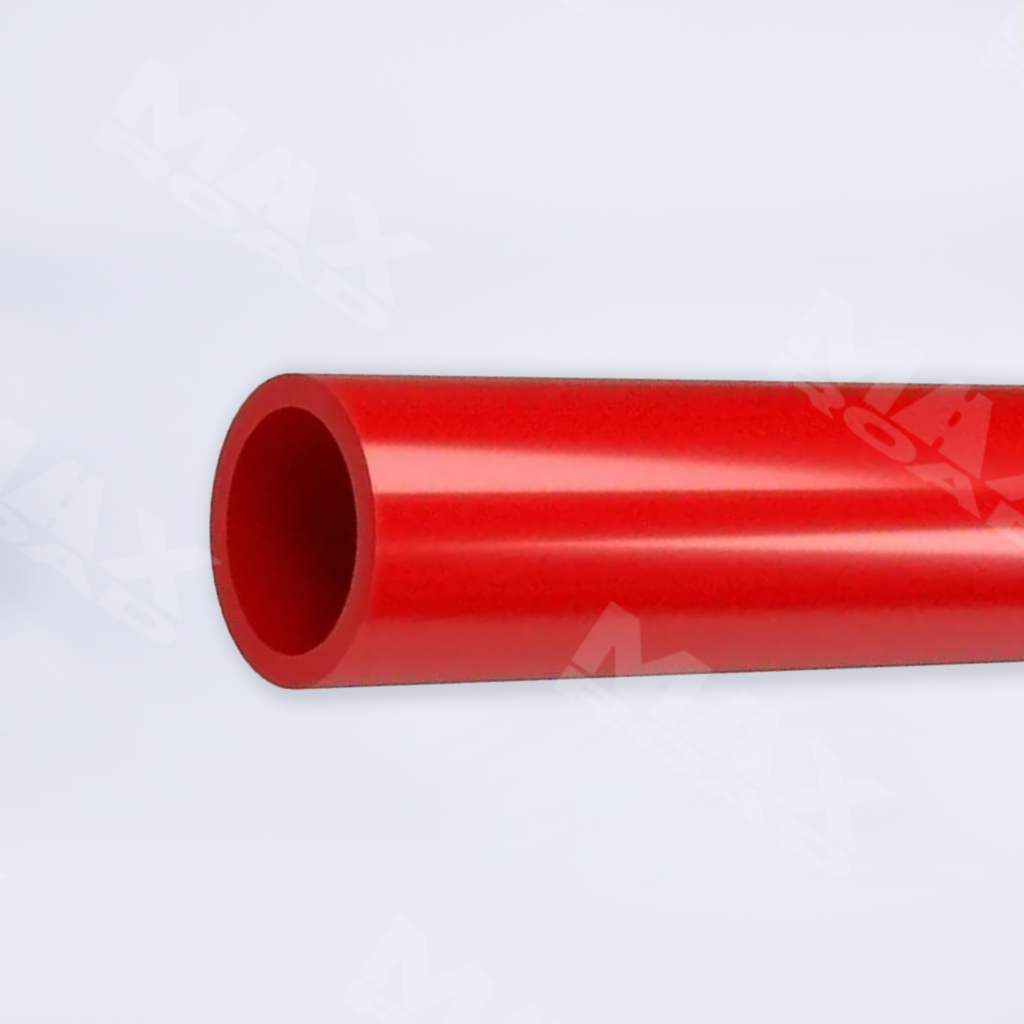

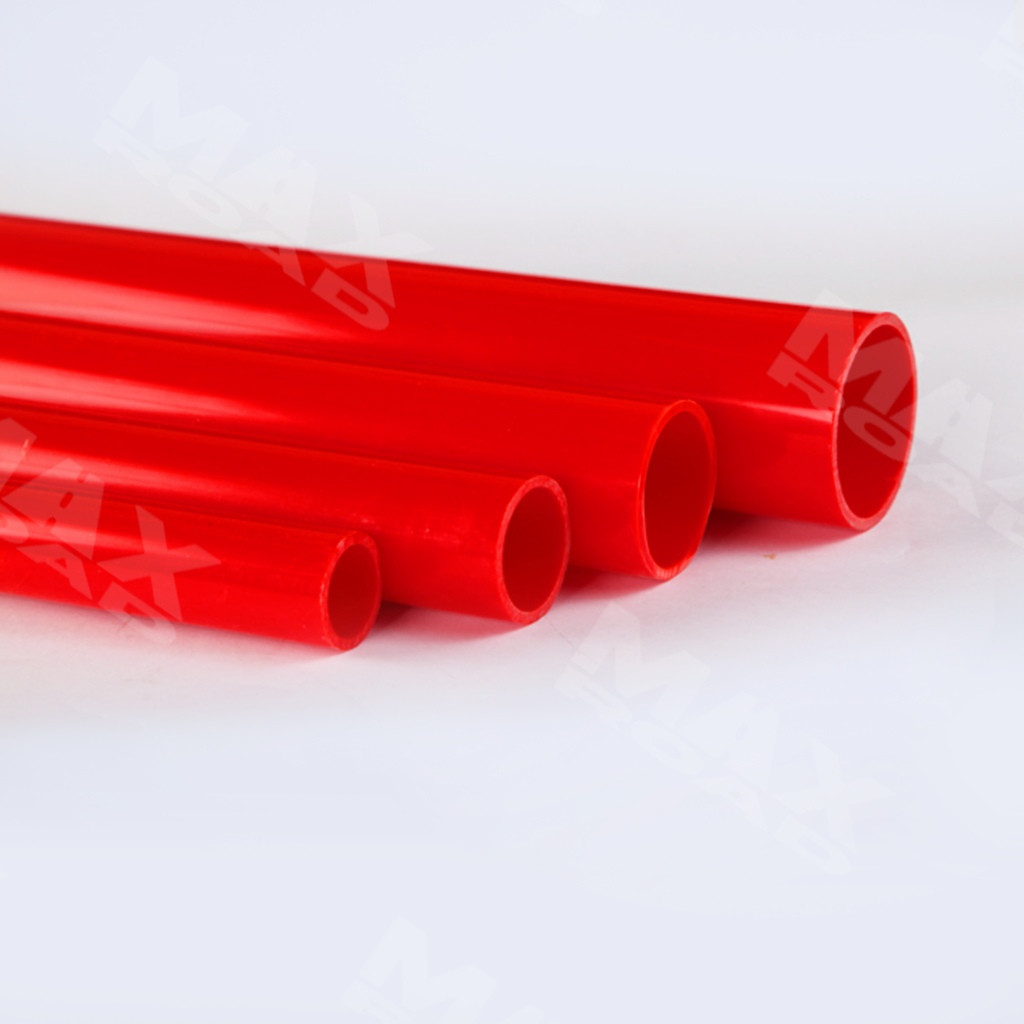

UPVC Electrical Conduit

Product Details

Material: PVC Pipe

Diameter: 20mm(1/2") - 63mm(2")

Thickness: 2.2mm -2.5mm

Length: 3m/pc

Direct Manufacturer

Nationwide Delivery
Lowest Price Guarantee
Repeat Buyers

Inquiry

Product Details

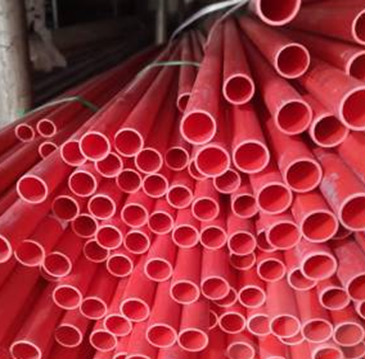

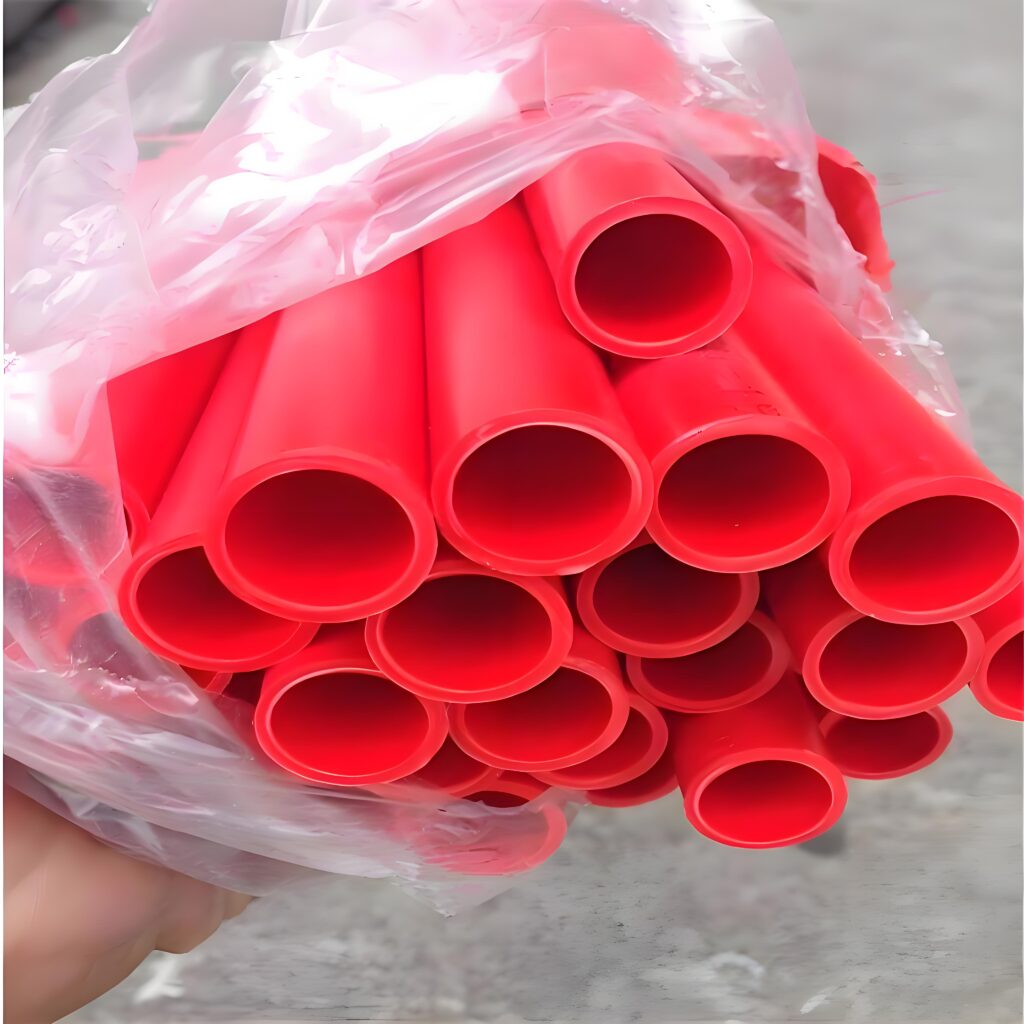

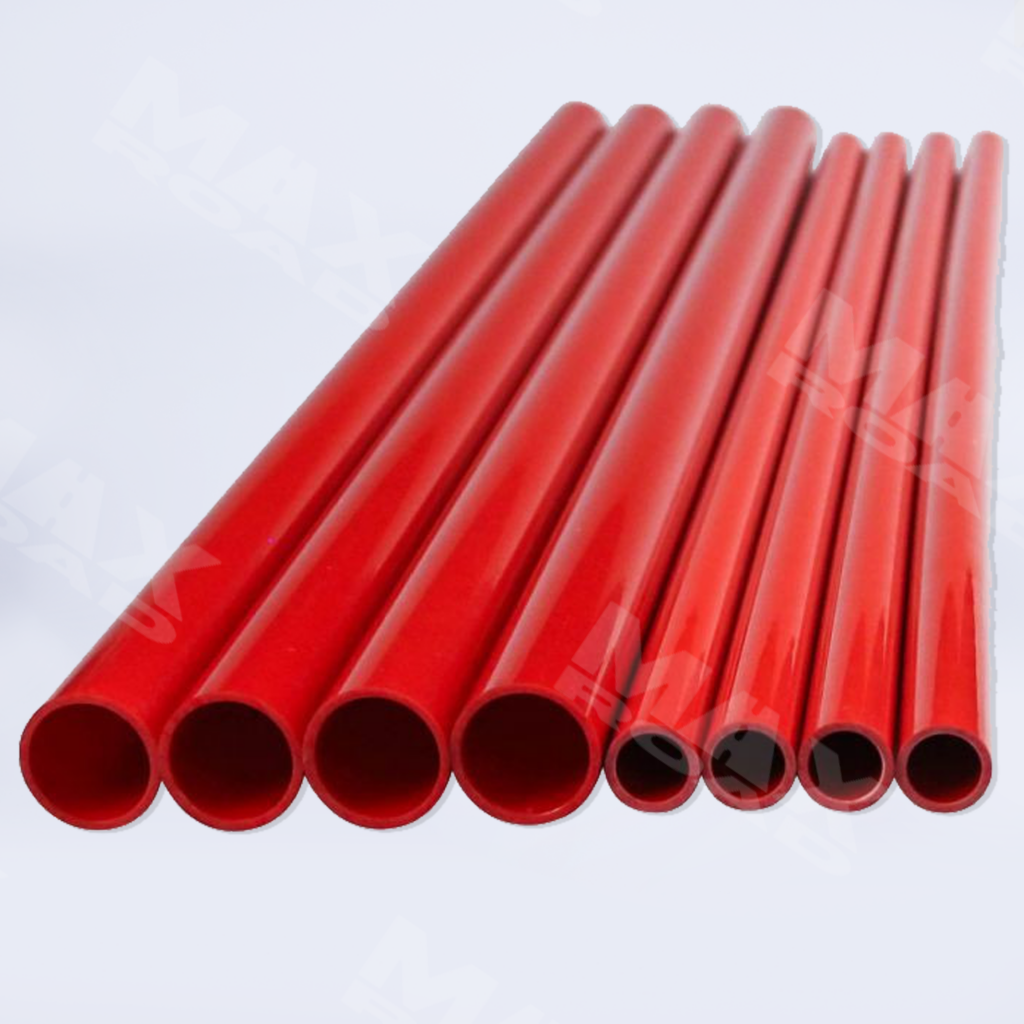

UPVC Electrical Conduit is a kind of wire threading pipe made of insulating grade polyvinyl chloride
resin as the main raw material, extruded by a plastic extruder and injection molded by an injection
molding machine, and produced through cooling, curing, shaping, inspection and other processes.
Main features: good insulation, easy construction, excellent corrosion resistance.

Model	EC-20	EC-25	EC-32	EC-40	EC-50	EC-63
Diameter	20mm(1/2″)	25mm(3/4″)	32mm(1″)	40mm(1 1/4″)	50mm(1 1/2″)	63mm(2″)
Thickness	2.2mm	2.3mm	2.4mm	2.4mm	2.4mm	2.5mm
Weight (±5%)	0.585kg/pc	0.825kg/pc	1.2kg/pc	1.35kg/pc	2kg/pc	2.64kg/pc
Length	3m/pc	3m/pc	3m/pc	3m/pc	3m/pc	3m/pc
