Monocrystalline TA Solar Panels | 565 – 655Watts | 1500V

Key Features:

Solar power generation provides low emissions

High safety standards, superior energy density, and long-term performance.

Adaptable to a variety of energy needs

Direct Manufacturer

Nationwide Delivery
Lowest Price Guarantee
Repeat Buyers

Inquiry

Product Details

Maximize your energy savings and reduce your environmental impact with our efficient Solar Panels. Ideal for residential and commercial use—Converting solar power into electric power directly. It has highly reliable, long lifespan, natural-friendly and it can both generate electricity independently and operate on grid.

Powered by the latest SMBB n-type solar cell, half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.

Basic Information

Model	SP- 565WTA	SP- 655WTA	SP- 570WTA	SP- 575WTA	SP- 585WTA	SP- 595WTA
Maximum Power (Pmax/W)	565W	655W	570W	575W	585W	595W
Dimensions	2382mm x 1134mm x30mm	3495mm x 2414mm x 44mm	2382mm x 1134 mm x 30mm	2382mm x 1134 mm x 30mm	2382mm x 1134 mm x 30mm	2382mm x 1134 mm x 30mm
Cell	Mono	Mono	Mono	Mono	Mono	Mono
Maximum System Voltage	1500V	1500V	1500V	1500V	1500V	1500V
Junction Box	IP68 3diodes	IP68 3diodes	IP68 3diodes	IP68 3diodes	IP68 3diodes	IP68 3diodes
Frame	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Application Level	N-type i-TOPCon Monocrystalline	N-type i-TOPCon Monocrystalline	N-type i-TOPCon Monocrystalline	N-type i-TOPCon Monocrystalline	N-type i-TOPCon Monocrystalline	N-type i-TOPCon Monocrystalline
Weight	28.8 kg	34.9 kg	28.8 kg	28.8 kg	28.8 kg	33 kg
Module Efficiency (%)	20.9	21.1	21.1	21.3	21.7	22
Wind Load/Snow Load	2400pa/5400pa	2400pa/5400pa
Operating Temperature	-40°C~+85°C	-40°C~+85°C	-40C~+85C	-40℃~+85C	-40°C~+85C	-40°C~+85C
Open Circuit Voltage (Voc/V)	45.6	45.5	45.8	45.8	45.6	48.1
Connector	MC4 EVO2 / TS4 Plus / TS4*	MC4 EVO2 / TS4 Plus / TS4*	MC4 EVO2/TS 4 Plus / TS4	MC4 EVO2/TS 4 Plus / TS4*	MC4 EVO2 /TS 4 Plus / TS4*	MC4 EVO2 /TS 4 Plus / TS4*
Cables	4.0mm2 (0.006 inches2) Portrait: 350/280 mm(13.78/11.02	4.0mm2 (0.006 inches2) Portrait: 350/280 mm (13.78/11.02 inches) Length can be customized	4.0mm (0.006 inches) Portrait: 350/280 mm (13.T8/11.02 inches)	4.0mm(0.006 inches) Portrait: 350/280 mm (13.78/11.02 inches)	4.0mm (0.00S inches) Portrait: 350/280 mm (13.78/11.02 inches\|	4.0mm (0.006 inches) 350/280 mm (13.78/11.02 inches)
Warranty	12-year product warranty 30-year linear power output warranty	12-year product warranty 30-year linear power output warranty	12-year product warranty	12-year product warranty	12-year product warranty	12-year product warranty

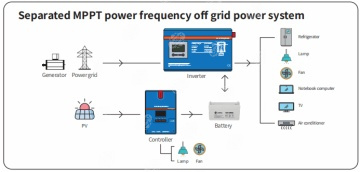

How It Works?

Operating Conditions

Maximum System Voltage	1000V/1500V DC
Operating Temperature	-40℃~+85℃
Maximum Series Fuse Rating	25A
Maximum Static Load, Front*	5400Pa(112 lb/ft2)
Maximum Static Load, Back*	2400Pa(50lb/ft2)
NOCT	45+2℃
Safety Class	Class ll
Fire Performance	UL Type1

Harness the power of the sun, designed to provide reliable and sustainable energy solutions for residential and commercial properties. Ideal for reducing energy costs and lowering your carbon footprint.

Application

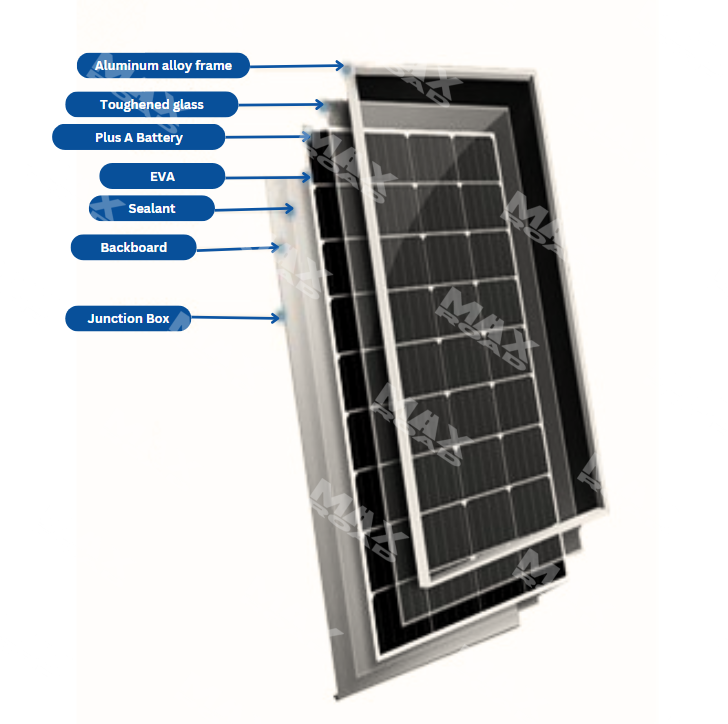

Solar Panel Parts

Advantage

High customer value
Low Voltage design with higher string power, effectively reducing BOS (Balance of System) and LCOE (Levelized Cost of Energy);
Excellent compatibility with existing mainstream system components.
High energy yield:
Excellent low irradiation performance, validated by 3rd party.
Lower temperature co-efficient.
Higher bi-faciality, with up to 10%~20% additional power gain from back side depending on albedo.
